Overview

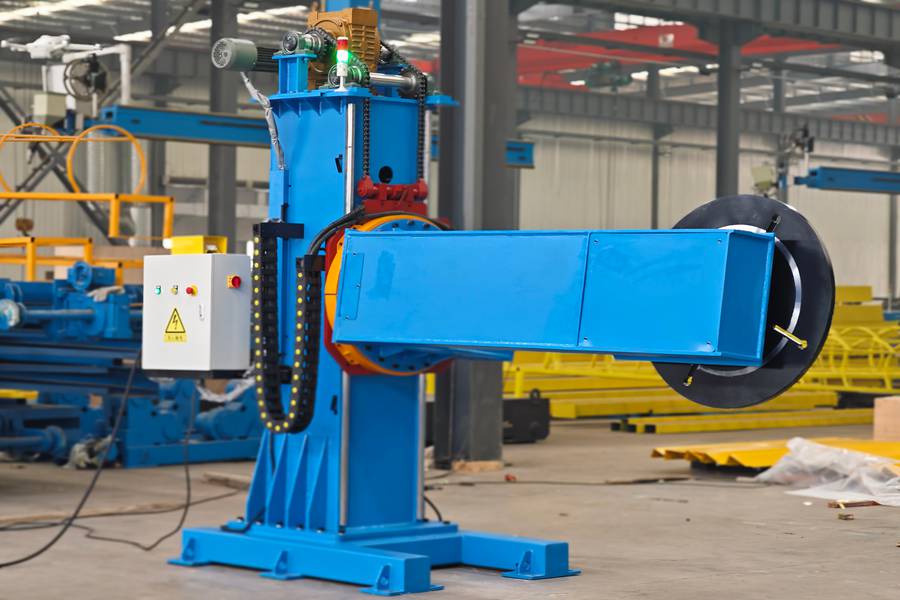

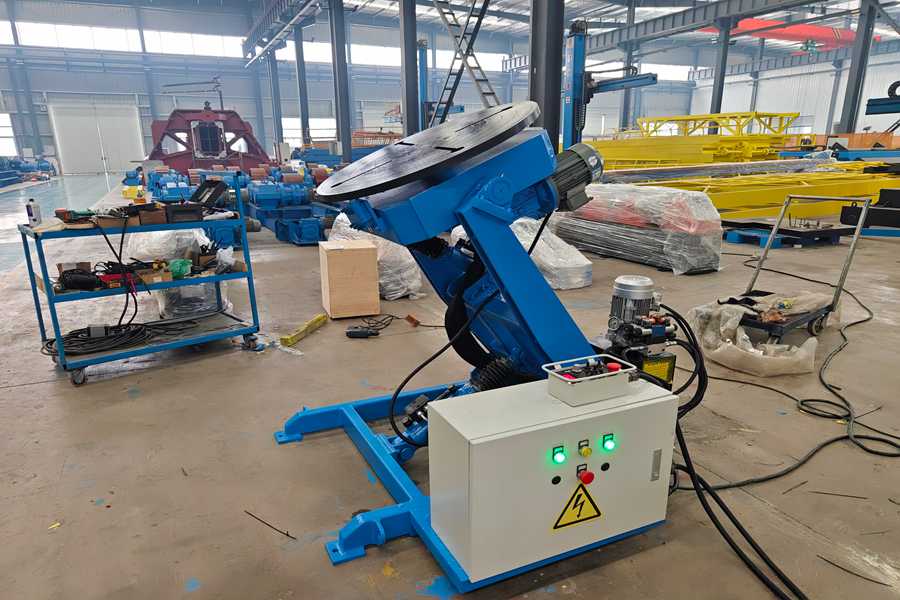

This welding positioner series offer various types of positioners, including tilt-type, head-tail rotation, head- tail elevate-and-rotate,head-tail tilt, and double-rotation models. These positioners can be integrated with welding column boom to form automatic welding systems. They can also serve as peripheral equipment for robots, enabling welding automation. Additionally, they are customizable to suit different types of workpieces and specific process requirements, allowing for the design of specialized
positioners tailored to the user’s needs.

Inquiry Now

Features

Enables 360° rotation and multi-angle tilting of the workpiece, ensuring optimal welding positions for improved weld quality and operational efficiency.
Equipped with a variable frequency drive system for smooth start/stop and precise speed control, adaptable to various welding processes.
Accommodates a wide range of workpiece shapes and sizes, offering high process flexibility for applications in machinery, shipbuilding, and pressure vessel fabrication.
Rugged construction with user-friendly operation; easily integrated with welding robots or column & boom manipulators for automated welding setups.

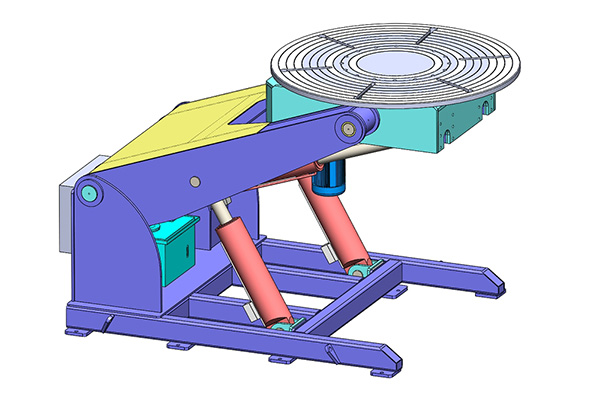

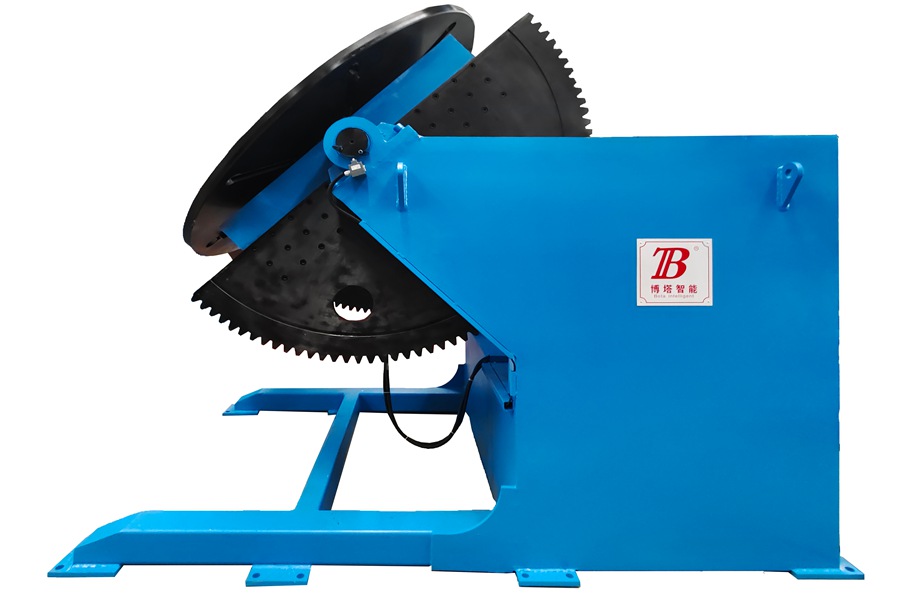

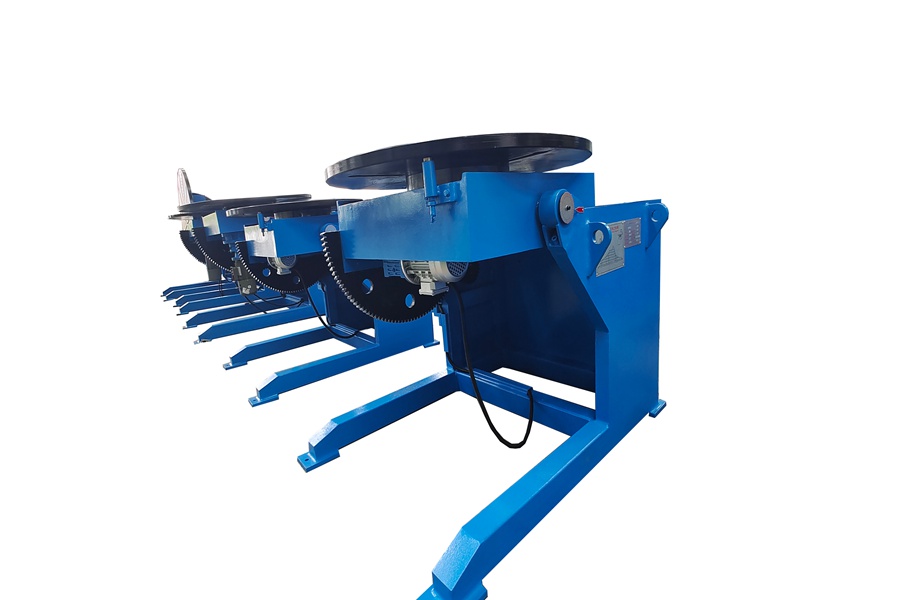

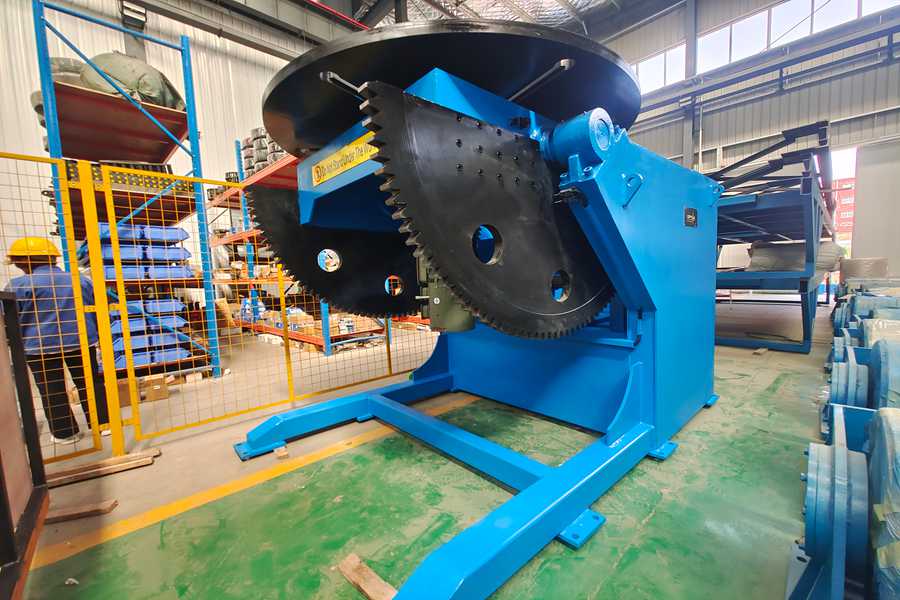

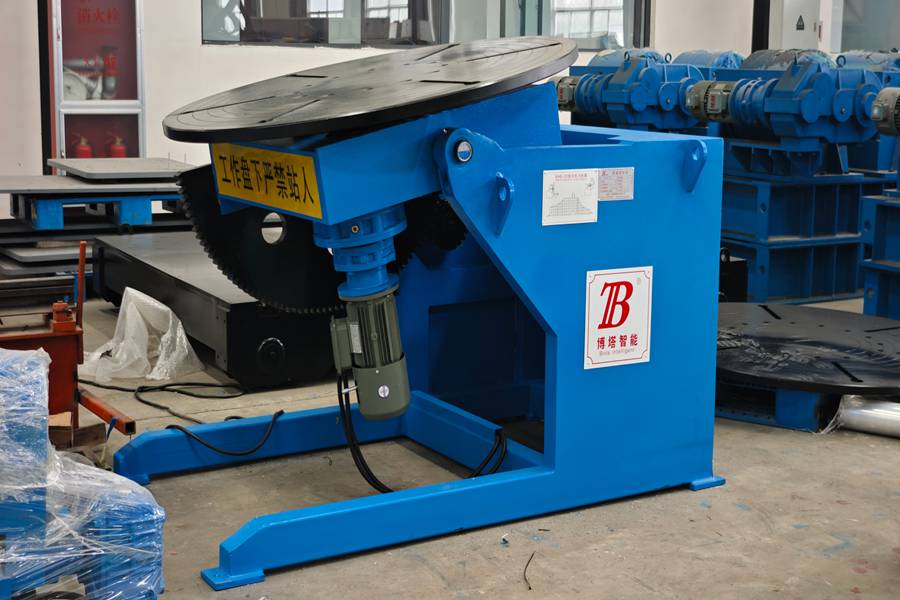

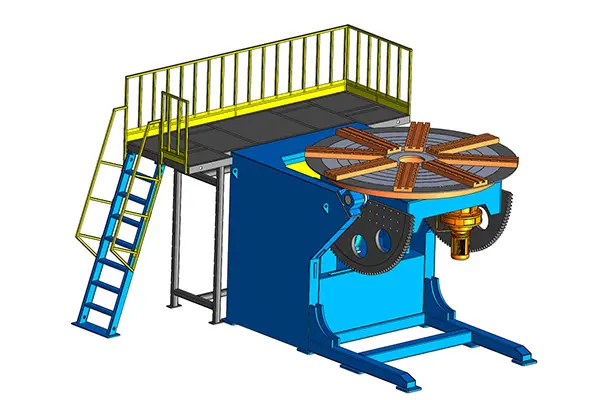

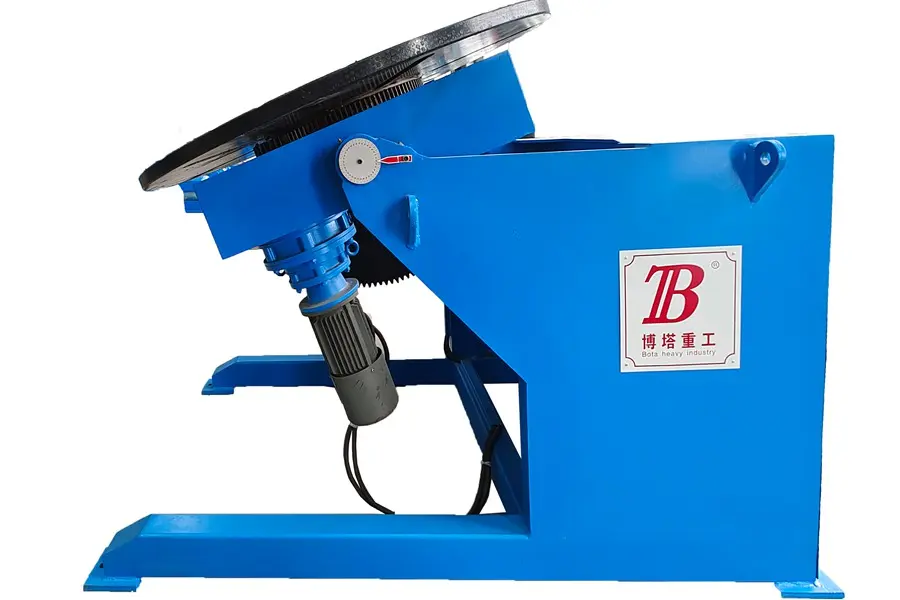

Universal Type Welding Positioner-598787

Model	BHB-1	BHB-3	BHB-6	BHB-10	BHB-20	BHB-30	BHB-50	BHB-80	BHB-100	BHB-150	BHB-200
Load cap(kg)	100	300	600	1000	2000	3000	5000	8000	10000	15000	20000
Rotation speed (pm)	0.25-6	0.2-4	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.5	0.02-0.2	0.02-0.2	0.02-0.2	0.02-0.2
Flip speed (rpm)	Manual	Manual	0.3	0.3	0.25	0.25	0.2	0.2	0.2	0.2	0.2
Table diameter(mm)	⌀400	⌀500	⌀800	⌀1000	⌀1200	⌀1400	⌀1600	⌀2000	⌀2000	⌀2000	⌀2500
Max Eccentricity (mm)	100	100	100	100	150	150	200	200	200	200	200
Max Gravity Centre Distance (mm)	200	150	300	300	300	300	300	400	400	500	630
Table Flip Angle (°)	0-90	0-90	0-90	0-90	0-90	0-90	0-90	0-90	0-90	0-90	0-90
Rotary motor power (kw)	0.12	0.2	0.37	0.37	0.75	1.5	2.2	3	3	3	4
Tilting motor power (kw)	Manual	Manual	0.37	0.75	1.5	2.2	3	4	4	5.5	7.5
Voltage(V)	220	220	380	380	380	380	380	380	380	380	380
Speed mode	Rotaion seed variable Frequency dnive Flipspeed constant	Rotaion seed variable Frequency dnive Flipspeed constant	Rotaion seed variable Frequency dnive Flipspeed constant	Rotaion seed variable Frequency dnive Flipspeed constant	Rotaion seed variable Frequency dnive Flipspeed constant	Rotaion seed variable Frequency dnive Flipspeed constant	Rotaion seed variable Frequency dnive Flipspeed constant	Rotaion seed variable Frequency dnive Flipspeed constant	Rotaion seed variable Frequency dnive Flipspeed constant	Rotaion seed variable Frequency dnive Flipspeed constant	Rotaion seed variable Frequency dnive Flipspeed constant

Video

Bota welding positioners offer 360° rotation and multi-angle tilting to keep workpieces in optimal welding position. They support standalone or automated use and are ideal for pressure vessels, machinery, and more.

Designed for Intelligent Welding

Powering Your Production

Bota powers your production with reliable and efficient welding solutions. Our automated systems and precision controls help you improve weld quality, reduce cycle times, and meet the demands of high-volume industrial workflows.

Contact Us

Designed for Intelligent Welding

Weld with Confidence

Weld with confidence using Bota welding positioners. With 360° rotation and multi-angle tilting, your workpieces stay in optimal welding position, ensuring stable operation, consistent welds, and improved overall quality from the ground up.

Contact Us

Optional Accessories

Global Client Showcase

In multiple countries and regions around the world, we provide high-quality welding equipment and have successfully offered customized solutions to clients across various industries. Our customers span multiple sectors, including automotive manufacturing, construction, shipbuilding, aerospace, and more.
