Overview

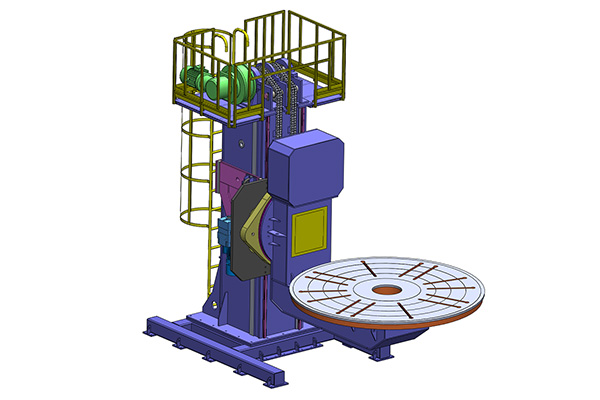

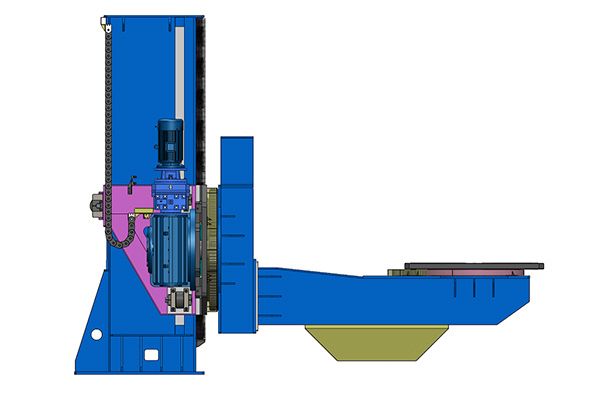

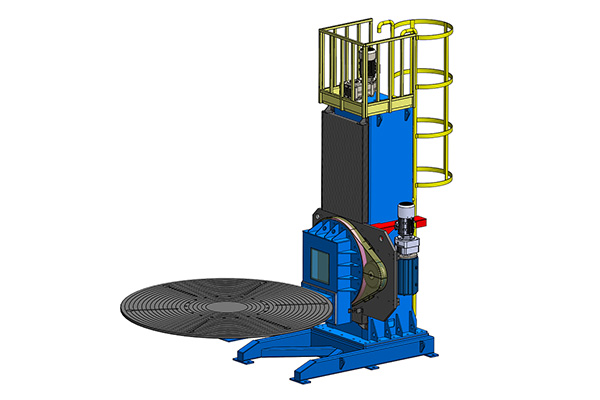

The Bota L-Type Welding Positioner features a vertical rotary structure designed for multi-angle welding of small to medium-sized complex workpieces. It allows both horizontal rotation and vertical tilting, ensuring optimal weld positioning at all times. Compact in design and space-efficient, it integrates easily with automated production lines and robotic welding systems.

Features

  • Combines vertical rotation with tilting motion to enable flexible positioning of complex workpieces, improving weld accessibility and consistency.

  • Compact footprint makes it ideal for confined workspaces and seamless integration into automated welding cells.

  • Compatible with various fixtures and tooling for fast workpiece changeover, supporting flexible production with small batch volumes.

  • Offers precise and smooth motion control, making it well-suited for integration with robotic welding systems to achieve high-accuracy automation.

ModleBHB-1000LBHB-2000LBHB-5000L
Rated load weigh1000kg2000kg5000kg
Repeatability±0.2mm(R=500mm)±0.2mm(R=500mm)±0.2mm(R=500mm)
Matching disk diameter1000mm1500mm2200mm
Rotary axis angle360°at anv angle360°at anv angle360°at any angle
Rotary speed0-7rpm0-5rpm0-3rpm
Flip axis angle±200°±200°±200°
Flip speed0-4rpm0-3rpm0-2rpm

Video

Bota welding positioners offer 360° rotation and multi-angle tilting to keep workpieces in optimal welding position. They support standalone or automated use and are ideal for pressure vessels, machinery, and more.

Designed for Intelligent Welding

Powering Your Production

Bota powers your production with reliable and efficient welding solutions. Our automated systems and precision controls help you improve weld quality, reduce cycle times, and meet the demands of high-volume industrial workflows.

Designed for Intelligent Welding

Weld with Confidence

Weld with confidence using Bota welding positioners. With 360° rotation and multi-angle tilting, your workpieces stay in optimal welding position, ensuring stable operation, consistent welds, and improved overall quality from the ground up.

Optional Accessories

Global Client Showcase

In multiple countries and regions around the world, we provide high-quality welding equipment and have successfully offered customized solutions to clients across various industries. Our customers span multiple sectors, including automotive manufacturing, construction, shipbuilding, aerospace, and more.

Trusted by Global Clients

Request a Quote Now

By submitting a simple quote request, you can quickly receive purchasing recommendations and pricing tailored to your project.
