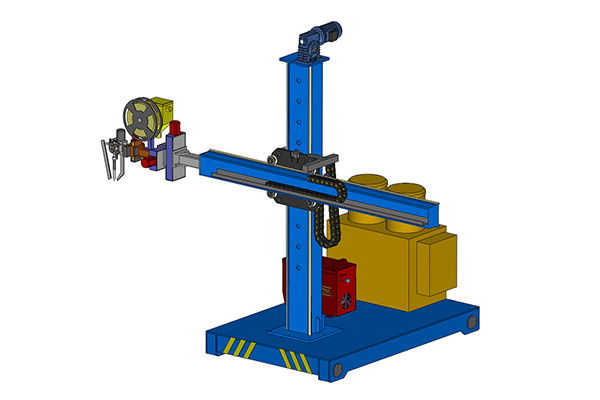

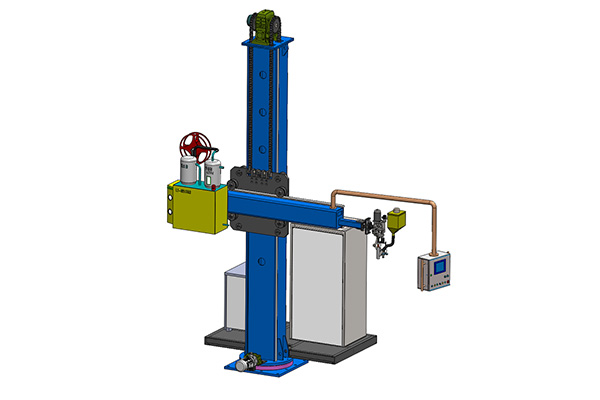

Overview

The standard welding manipulator is ideal for medium-load and general welding tasks, widely used in industries such as pressure vessels, pipelines, and steel structures. Compared to heavy-duty manipulators, it is more compact and cost-effective; compared to man-riding types, it offers fully automated control without the need for manual tracking, ensuring safer and more efficient operation. It’s a practical choice for companies seeking stable and efficient production.

Features

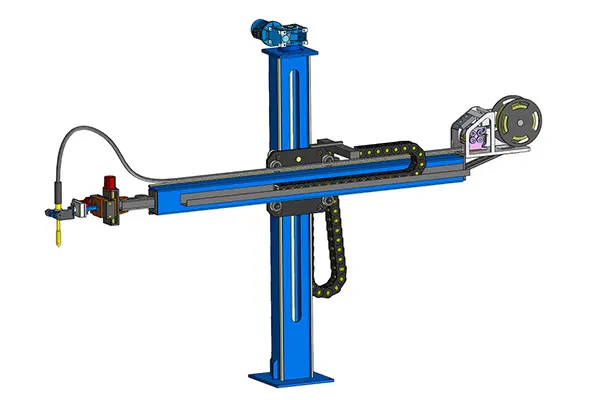

  • Column & Boom guiding rails are designed in a “V” shape.

  • They offer convenient adjustment, smooth movement, and high precision.

  • An automatic locking device is employed. In case of chain breakage, the hook hangs into the anti-fall hole under spring tension.This
    prevents the boom and slider from falling down, ensuring the safety of both equipment and operators.

  • Imported frequency converters are utilized, providing a wide speed range and high accuracy.

Model ParameterBCZQ1.5*1.5BCZQ2*2BCZQ3*3BCZQ4*4—4*5
Effective lifting range(mm)1500200030004000
Effective retracting range (mm)1500200030004000—5000
Lifting speed(mm/min)1000100010001000
Retracting speed (mm/min)100-1000100-1000100-1000100-1000
Min.boom height(mm)700-800700-800700-800700-800
Max permissible load at boom end (kg)80-12080-12080-12080-120
Column rotationManual/MotorizedManual/MotorizedManual/MotorizedManual/Motorized
Trolley travelling (mm/min)Manual/MotorizedManual/MotorizedManual/MotorizedManual/Motorized
Inner span of trolley rail (mm)1000-25001000-25001000-25001000-2500

Video

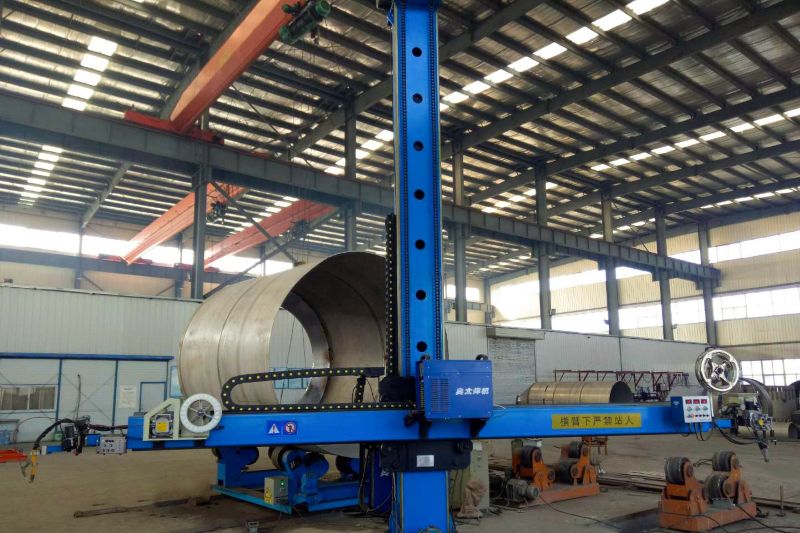

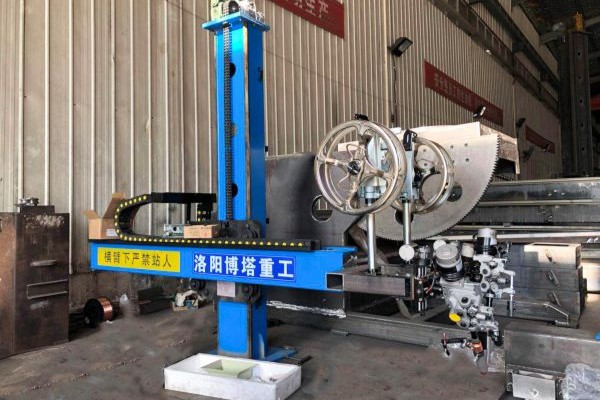

Through the video, you can clearly see how our welding manipulators perform under real working conditions. With a high-rigidity boom and intelligent control system, the machine automatically corrects the welding path, overcomes deformation challenges in large workpieces, and enables continuous operation around the clock.

Designed for Intelligent Welding

Powering Your Production

If you’re looking to improve welding efficiency, consistency, and safety in your fabrication process, our Welding Column & Boom systems are the ideal solution. Designed for industries such as pressure vessels, steel structures, pipelines, and shipbuilding, our equipment allows you to automate your welding tasks with precision and stability.

Designed for Intelligent Welding

Weld with Confidence

With Bota’s column & boom systems, you no longer need to worry about uneven welds, limited manual reach, or low production output. Our machines are built to deliver smooth vertical and horizontal movement, supporting a wide range of welding heads and processes. Whether you need a standard setup, a heavy-duty solution for large workpieces, or a man-riding type for close-up manual assistance, we provide reliable, customizable options to fit your production needs.

Optional Accessories

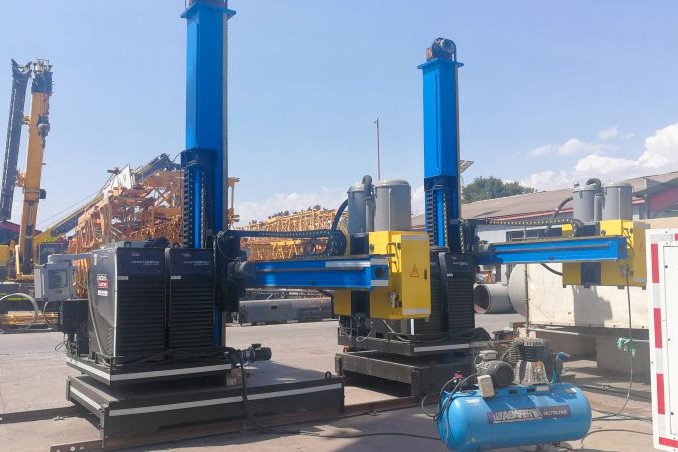

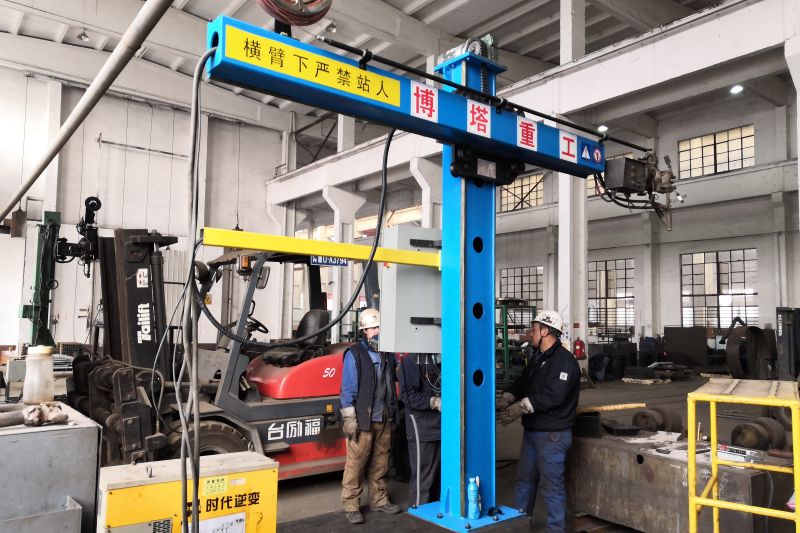

Global Client Showcase

In multiple countries and regions around the world, we provide high-quality welding equipment and have successfully offered customized solutions to clients across various industries. Our customers span multiple sectors, including automotive manufacturing, construction, shipbuilding, aerospace, and more.

Trusted by Global Clients

Request a Quote Now

By submitting a simple quote request, you can quickly receive purchasing recommendations and pricing tailored to your project.
